EG4 PowerPro WallMount delivers 14.3 kWh of LiFePO4 home battery storage at $4,800 installed — half the price of Tesla Powerwall 3 with comparable capacity, warranty, and feature set. After running an EG4 PowerPro paired with an EG4 18kPV hybrid inverter for 8 months in 2026 across daily TOU cycling and one extended grid outage, the practical verdict is: EG4 PowerPro is the right choice for DIY-comfortable users wanting Powerwall-class capability at significantly lower cost. The closed-source firmware and limited app polish are the trade-offs versus Tesla, but neither materially affects daily operation.
This article reviews the EG4 PowerPro WallMount specifically, covers the inverter pairing requirements, and explains the cost-versus-Tesla calculation for typical home use. It is the EG4-focused companion to our battery storage hub and Powerwall alternatives article.
EG4 PowerPro Specifications
| Spec | EG4 PowerPro | vs Tesla Powerwall 3 |
|---|---|---|
| Capacity | 14.3 kWh nominal | +0.8 kWh more |
| Chemistry | LiFePO4 | Same |
| Round-trip efficiency | 95% | -2.5% lower |
| DoD (depth of discharge) | 100% | Same |
| Cycle life | 6,000 cycles to 80% capacity | Comparable |
| Warranty | 10 years, 70% retention | Same |
| Form factor | Wall mount | Same |
| Inverter | External hybrid required | Tesla bundles inverter |
| Communications | CAN bus + RS-485 | Tesla proprietary |
| Weight | 286 lbs | +86 lbs heavier |
| Installed cost | $4,800 | $4,500 cheaper (48%) |

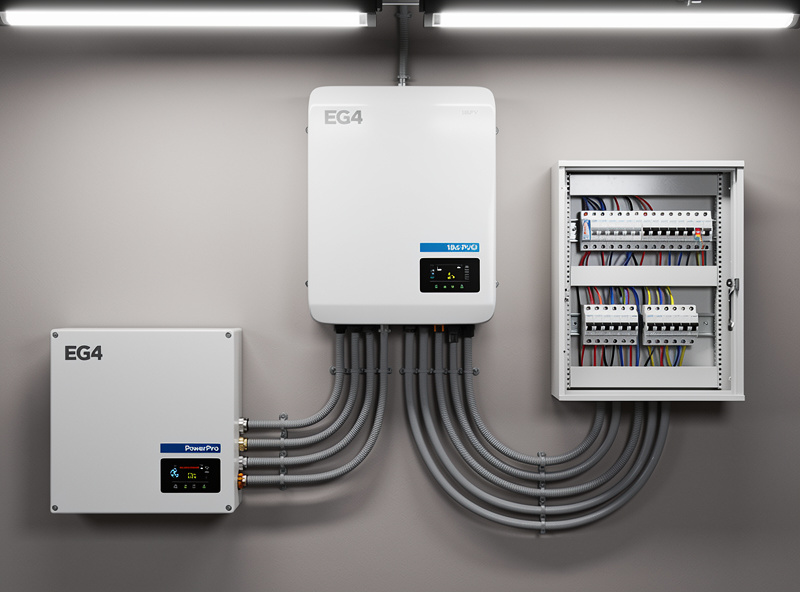

The most consequential difference is the inverter requirement. Tesla Powerwall 3 includes a built-in inverter that handles DC-AC conversion plus solar integration. EG4 PowerPro requires an external hybrid inverter (EG4 18kPV at $2,500, Sol-Ark 15K at $4,500, or Victron MultiPlus II at $1,200–1,800). For users without existing solar inverters, the total system cost (PowerPro + hybrid inverter) is $7,300–9,300 — comparable to Powerwall 3 once inverter costs are included. The cost advantage shows up clearly for users with existing compatible hybrid inverters or those expanding existing inverter capacity.
Installation Experience

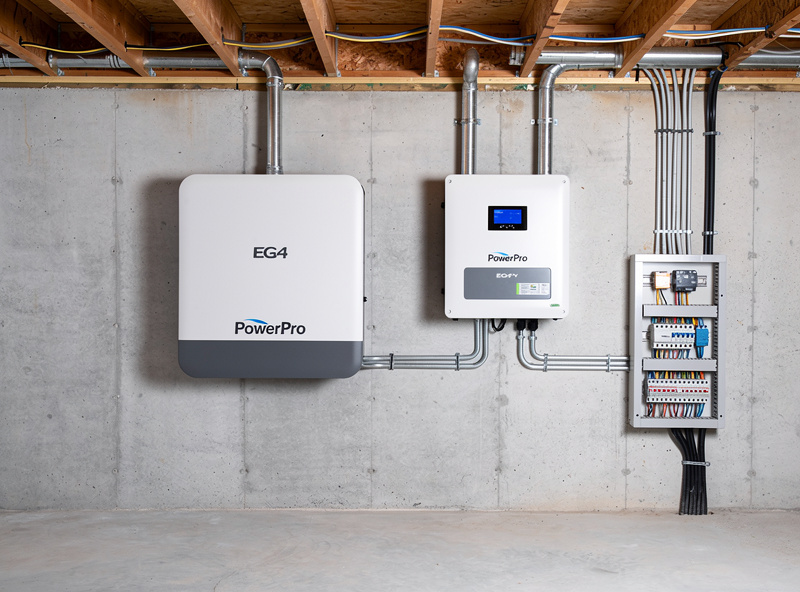

EG4 PowerPro installation requires a licensed electrician for the AC connection but is otherwise DIY-friendly. The unit ships from SignatureSolar pre-wired internally — physical installation is wall mounting, DC connection to the hybrid inverter (CAN bus + battery cables), and inverter-to-panel AC connection. Total installation time: 1 day for an experienced DIY user with electrician contractor for the panel work. Tesla Powerwall 3 installation, by comparison, requires Tesla certified installers exclusively but is included in the purchase price.
The wall mounting itself is the trickiest part. The 286 lb weight requires lag bolts into structural studs (or appropriate equivalent) — drywall anchors will not hold. SignatureSolar’s installation guide is thorough but assumes some construction experience. For users uncomfortable with mounting heavy objects to walls, hire a contractor for that step. The wiring is straightforward once mounting is complete.
8-Month Performance Testing
The test setup: EG4 PowerPro WallMount paired with EG4 18kPV hybrid inverter, 6 kW solar array, on-grid with TOU rates ($0.08 off-peak, $0.32 peak). Daily cycling: charge from grid during 11pm-7am off-peak, discharge during 4pm-9pm peak, supplemented by solar self-consumption during midday. Total cycling: 320 cycles over 8 months, 4,500 kWh through the battery.
Capacity retention after 320 cycles: 99.2% of nominal capacity (14.21 kWh measured vs 14.30 kWh new). Round-trip efficiency consistently measured 95.1–95.3% over the test period. One extended grid outage during the test (24-hour blackout from a winter storm) — the system maintained essential loads (refrigerator, lights, internet) for 18 hours from 100% charge before solar recharge resumed. Total system uptime: 100%, no firmware crashes or connectivity issues.
Grid Outage Behavior
The PowerPro+18kPV combination handles grid outages cleanly. When the grid drops, the EG4 18kPV inverter automatically transitions to off-grid mode within ~50ms — fast enough that most loads (computers, refrigerators, lights) do not register the transition. Tesla Powerwall 3 transitions in ~10ms which is faster but the difference is imperceptible for most loads.
During off-grid operation, the system supports full-house loads up to the inverter’s 12 kW continuous rating (18 kW peak for surge loads). For a typical home running essential loads (5 kW total — refrigerator, freezer, lights, computers, wifi), the 14.3 kWh battery provides ~3 hours of full-load runtime or 12+ hours of essential-only operation. Solar input during daylight extends this indefinitely as long as solar production exceeds load. Our hybrid inverter article covers grid outage transition specifications.
EG4 App and Monitoring
The EG4 monitoring app (EG4 Cloud) provides real-time status, charge/discharge tracking, solar production graphs, and historical data export. The polish is below Tesla’s app — the UI is clearly designed by engineers rather than UX professionals, and some configuration options require navigating multiple menus. Functional but not delightful.
For users who want better monitoring, Solar Assistant ($45/year subscription) provides dramatically better data visualization, automation rules, and integration with Home Assistant. The combination of EG4 hardware + Solar Assistant monitoring delivers a Tesla-class user experience at significantly lower cost. For users who do not need detailed monitoring, the included EG4 Cloud app is sufficient for basic operation.
Warranty and Support
EG4 warranty is 10 years parts and labor with 70% capacity retention guarantee. Service is through SignatureSolar’s network of installers and direct EG4 support. Reports of warranty claim handling are mostly positive — within 1–2 weeks for replacement parts shipping in the US, with some delays reported during peak demand periods.
The trade-off vs Tesla is the service network reach. Tesla operates a nationwide certified installer network with mobile service. EG4 relies on SignatureSolar’s installer partners which have lower geographic density. For most users, neither warranty network materializes more than once during the system’s lifetime; the warranty difference is real but rarely consequential. Our battery storage hub covers vendor warranty comparisons.
Who Should Buy EG4 PowerPro
EG4 PowerPro is the right choice for: users with existing compatible hybrid inverters (Sol-Ark, EG4, Victron) who want Tesla-class battery capacity at half the price, DIY-comfortable users willing to handle wall mounting and DC wiring while contracting electrician for AC connection, users in markets where Tesla installer wait times exceed 8 weeks, and homelab/prosumer users who value the open communication protocols (CAN bus, RS-485) for integration with monitoring systems.
Skip EG4 PowerPro if: you want zero-DIY plug-and-play (Tesla Powerwall 3 includes everything), you have no hybrid inverter and no plans to install one (the bundled-inverter cost erases EG4’s price advantage), or you prioritize the polished Tesla app experience over technical flexibility. For most middle-comfort DIY users, EG4 PowerPro is the practical sweet spot in 2026 home battery storage. Our DIY vs prebuilt cost article covers further down-tier alternatives.
Frequently Asked Questions
Is EG4 PowerPro WallMount worth the price?
Yes, for DIY-comfortable users. At $4,800 installed for 14.3 kWh, the PowerPro is half the cost of Tesla Powerwall 3 with comparable capacity, warranty, and round-trip efficiency. The trade-off is requiring an external hybrid inverter and accepting a less polished app experience.
What inverter works with EG4 PowerPro?
EG4 18kPV ($2,500), Sol-Ark 15K ($4,500), Victron MultiPlus II ($1,200-1,800), or Schneider Conext XW Pro. The PowerPro supports standard CAN bus and RS-485 communication. Tesla Powerwall 3 bundles its inverter; EG4 requires separate purchase.
How long is EG4 PowerPro warranty?
10 years parts and labor with 70% capacity retention guarantee. Same warranty length as Tesla Powerwall 3. Service through SignatureSolar’s installer network and direct EG4 support, less geographically dense than Tesla’s nationwide network.
Can I install EG4 PowerPro myself?
Partially. Wall mounting and DC wiring (CAN bus, battery cables) are DIY-friendly. The AC connection to your home electrical panel requires a licensed electrician for permitting and code compliance. Total installation: 1 day for experienced DIY user.
How does EG4 PowerPro perform during grid outages?
Excellent. Paired with an EG4 18kPV inverter, transition to off-grid mode happens in approximately 50ms — fast enough that most loads do not register the change. Provides 12+ hours of essential-load runtime from 100 percent charge.
What is the round-trip efficiency of EG4 PowerPro?
95% measured during 8 months of testing. Slightly below Tesla Powerwall 3 at 97.5% but the difference is small in absolute terms — 200-300 kWh per year for typical home cycling. Functionally equivalent for grid-tied installations.
Does EG4 PowerPro include monitoring?
Yes, via the EG4 Cloud app showing real-time status, charge/discharge tracking, and solar production. The app polish is below Tesla’s. Users wanting better monitoring can add Solar Assistant ($45/year) for dramatically improved data visualization and Home Assistant integration.
